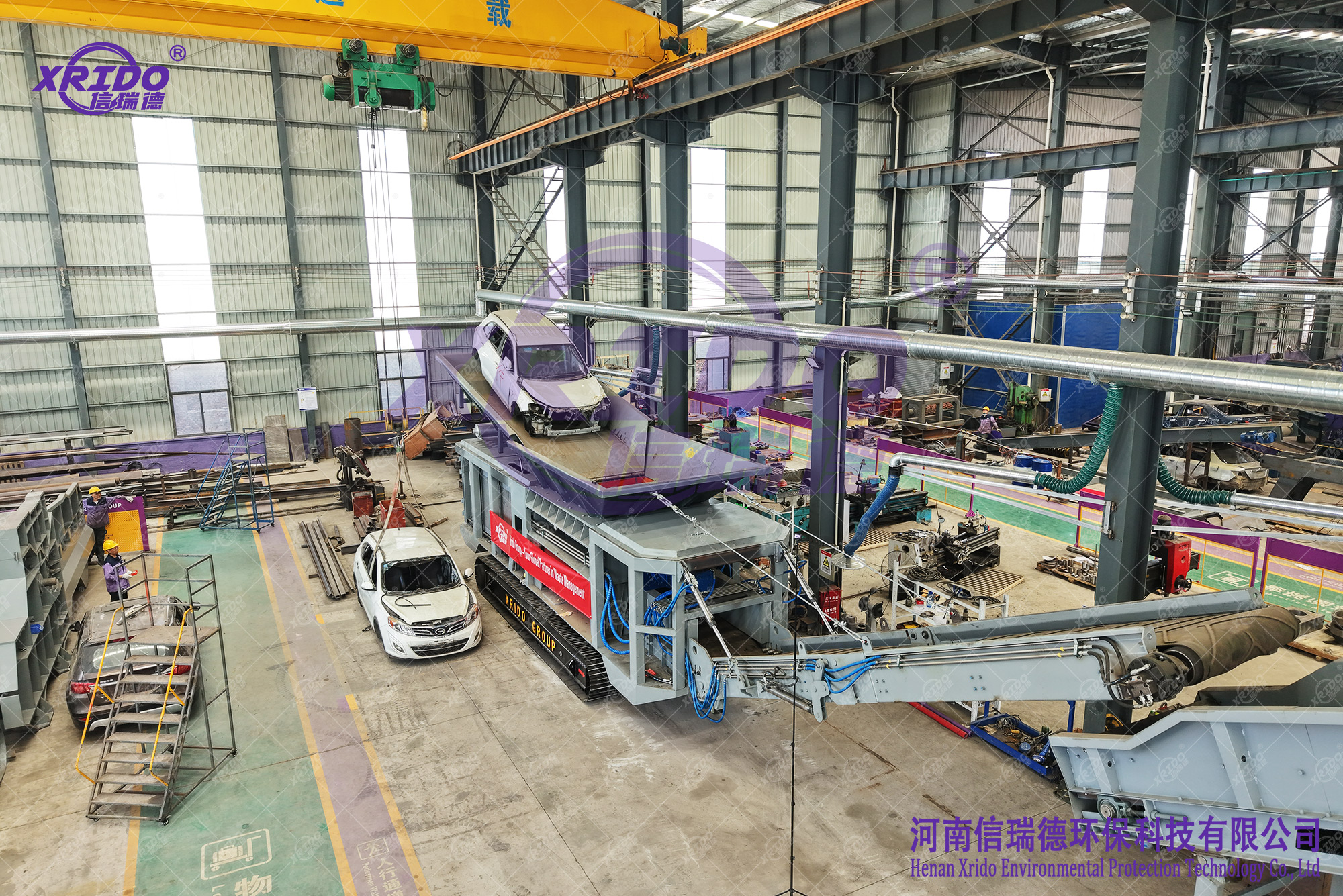

MSTD670 Mobile Shredder Overview: Matching Mobile Scrap Metal & Car Recycling Lines
The MSTD670 Mobile Shredder is a high-horsepower, all-around mobile shredder launched by XRIDO. Compared to smaller models in the same series, it boasts higher horsepower, a larger crushing capacity, and greater adaptability to various working conditions. This tracked machine requires no fixed infrastructure, supports 360-degree rotation and flexible relocation, and can be put into operation immediately upon arrival.
Power and Transmission System:
• Independent Power: Equipped with a large-capacity diesel fuel tank and hydraulic power unit, ensuring stable pressure and long operating range.
• Powerful Transmission: Utilizes a hydraulic motor and reducer assembly, providing strong power and smooth transmission to meet heavy-duty crushing requirements.
Cutter Box Structure:
• Core Structure: Employs a dual-shaft high-torque shearing structure, possessing powerful impact and shearing forces.
• Tenon and Mortise Fixing: A newly designed tenon and mortise structure secures the cutters, significantly enhancing their durability and stability.
Intelligent Control and Safety:
– Dual Control: Supports both remote control and manual control modes, offering flexible and safe operation.
• Self-protection: Equipped with overload protection and automatic reverse function, it automatically stops or reverses to protect the blades when encountering unbreakable hard objects.
Applicable Materials:
The MSTD670 is a multi-purpose machine that can easily handle the coarse crushing and volume reduction of various complex materials:
Scrap Metal: Whole materials such as scrap car shells, frames, and engines can be directly fed into the machine. Its high horsepower allows for rapid shredding into uniform flakes, effectively solving the problem of numerous cavities and impurities in car shells.
Bulky Household Waste: For large discarded furniture such as sofas, mattresses, and wardrobes that are difficult to process with ordinary low-horsepower machines, the MSTD670 can directly feed them into the machine for shredding, easily solving the problem of bulky waste disposal.
Automotive Recycling Production Line Matching Solution: In the field of scrap vehicle recycling, the MSTD670 is typically used as the core pre-treatment equipment in mobile crushing and sorting production lines.
The entire process is progressive, balancing production efficiency and material recovery rate:
1. Pre-treatment Shredding: The MSTD670 performs initial shredding of the entire vehicle or car body, breaking up the mixed and sticky state.
2. Deep Crushing: The shredded material enters the mobile metal crusher, where it is subjected to high-speed hammering, kneading, and compaction into clumps, removing surface impurities.
3. Multi-stage Sorting: First, the iron-containing main material is separated by magnetic separation; the remaining non-ferrous metals and waste then enter eddy current separation, ultimately achieving efficient three-stage separation of metallic and non-metallic waste.
