WORKING PRINCIPLE

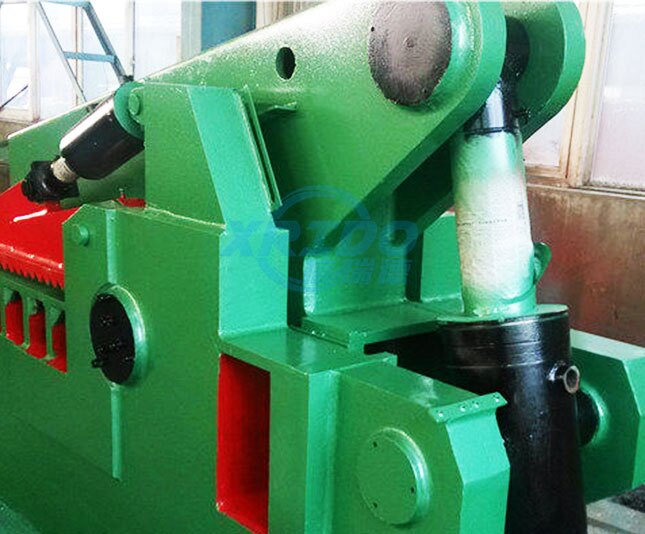

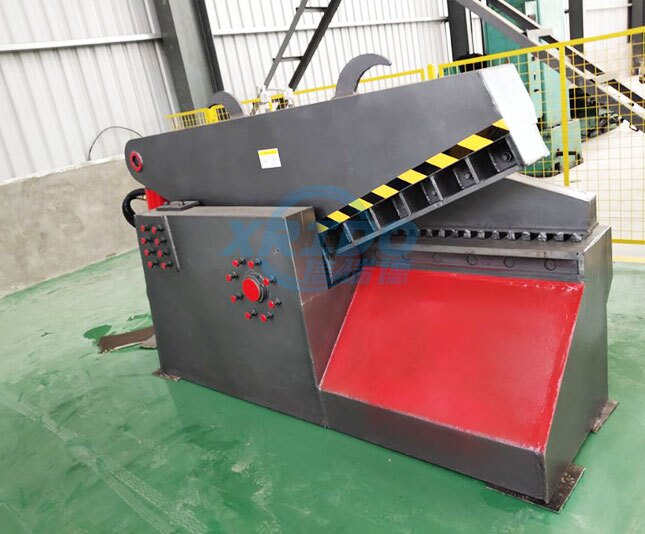

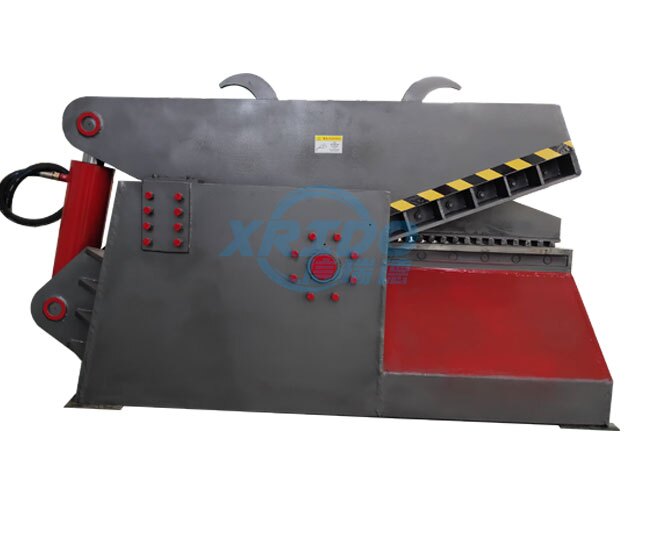

The crocodile shearing machine is a pair of upper and lower crocodile shearing structure. The working principle is driven by a hydraulic pump to form pressure. Under the control of the electromagnetic reversing valve and the oil circuit, the oil cylinder can be raised and contracted. The upper crocodile and the lower crocodile fixed knife realize the interactive shearing of the upper crocodile knife and the lower crocodile fixed knife under the continuous pushing action of the main oil cylinder to realize the interactive shearing of the material that enters the incision. shear.

FEATURES

1.It is hydraulically driven, easy to operate and easy to maintain.

2.Working knife length: 400mm, 600mm, 700mm, 800mm, 1000mm, 1200mm, the shearing force from 63 tons to 400 tons, a total of 8 grades. The shearing machine with a cutting edge of 700mm or more is especially suitable for cutting scrapped cars.

3.There is no need to install the foot screw, and the diesel engine can be used as the power source.

4.The equipment adopts hydraulic transmission. Compared with the mechanical transmission shearing machine, it has the advantages of small volume, lightweight, low inertia, low noise, stable movement, convenient operation, flexibility, large shear section and convenient adjustment of scissors. Operation is safe and easy to implement overload protection.
