Copper and Aluminum Waste Shredder
Patented Products
Output Capacity : 0.5-10T/H
Applicable Material : Copper aluminum water tank, Radiator, Motor rotor, Aluminum engine, Car rim, Baled aluminum
Product Description

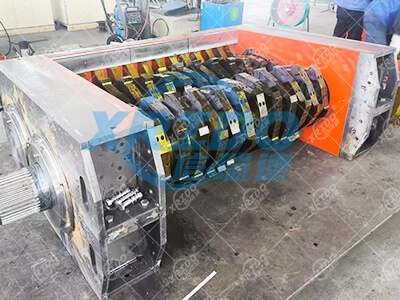

XRIDO serious double shaft shredder for Copper aluminum is for tough and hard metal waste . through the motor driving the shaft to achieve decrease size into small chip . working with high torque low speed by reducer. Its ideal equipment for metal shearing ,crushing ,tearing ,metal refining company optional.
Applicable copper and aluminum wire waste crusher material:
Copper aluminum water tank
Radiator
Motor rotor
Aluminum engine
Car rim
Baled aluminum
WORKING PRINCIPLE

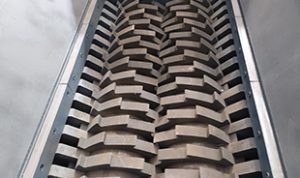

The material is broken by the mutual shear and tearing principle between two relatively rotating tools.It works with the characters of low speed ,large torque and high shear force,good tearing effect ,small noise good operating stability ,thus achieve the strong working power ,and high operating stability .
FEATURES
1.Low speed ,large torque,small noise ,PLC automatic control .

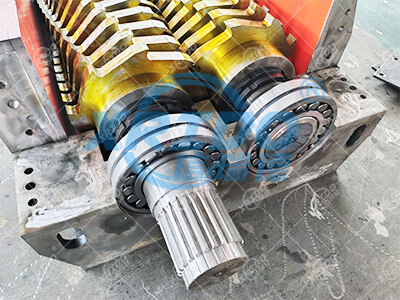

2.Bearing equipped with six-weight seal, valid on the waterproof and dustproof, prolong the service life of the bearing.
3.Achieve the multiple reuse of the tool with the welding repair technology ,even though after the tool wear ,thus greatly reduce the tool maintenance cost .
4.Modular box , convenient on tear open outfit ,easy maintenance .
5.According to the requirements of material type and finished product ,different materials and tool specifications will be selected .

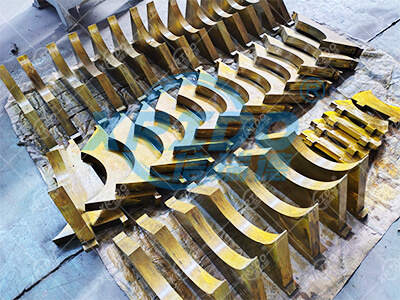

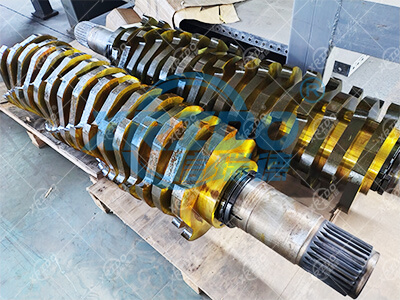

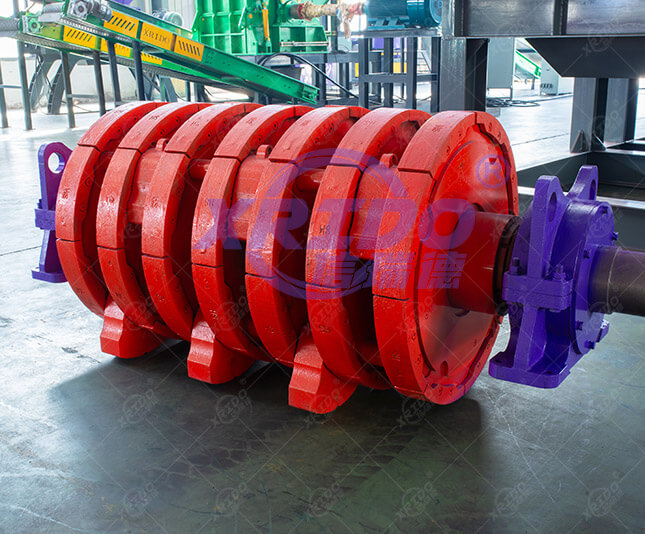

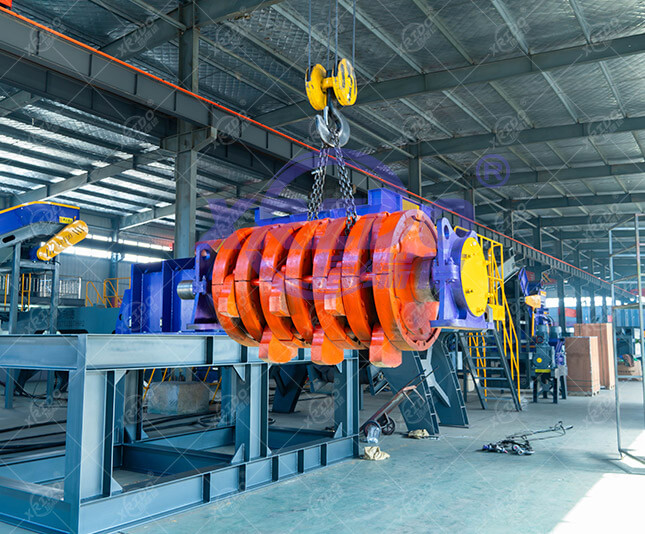

SHREDDER KNIFE ACCESSORIES
Technical Parameters
| Model | Overall Size(mm) | Crushing Cavity Size(mm) | Power(kw) | Weight(kg) |
| XRD - SZSS - 500 | 2800×1300×1850 | 500×480 | 11×2 | 2200 |
| XRD - SZSS - 800 | 3000×1300×1850 | 800×480 | 15×2 | 2500 |
| XRD - SZSS - 1000 | 3300×1900×2200 | 1000×690 | 22×2 | 5200 |
| XRD - SZSS - 1200 | 3600×2000×2200 | 1200×690 | 30×2 | 6400 |
| XRD - SZSS - 1500 | 4100×2100×2400 | 1500×850 | 55×2 | 9000 |
| XRD - SZSS - 1800 | 5800×2400×3300 | 1800×1206 | 75×2 | 13600 |
| XRD - SZSS - 2000 | 6400×2700×3500 | 2000×1490 | 90×2 | 20100 |
| XRD - SZSS - 2500 | 7500×3200×3800 | 2500×1800 | 110×2 | 22500 |
| XRD - SZSS - 3000 | 8600×3500×4000 | 3000×1800 | 160×2 | 31000 |
(Special - customized types can be customized according to the size and type of materials.)
