Hard Plastic Shredder: The “Steel Teeth” of Industrial Recycling
At the forefront of a plastic recycling production line, a roaring steel behemoth is constantly operating—the hard plastic shredder, with its unique mechanical structure, breaks down various stubborn plastic products into reusable raw materials. This specialized equipment, through a precisely designed shearing system, achieves efficient processing of high-strength plastics such as ABS, PC, and PET, becoming an indispensable key piece of equipment in the modern circular economy.
I. Precision Design of the Mechanical Structure

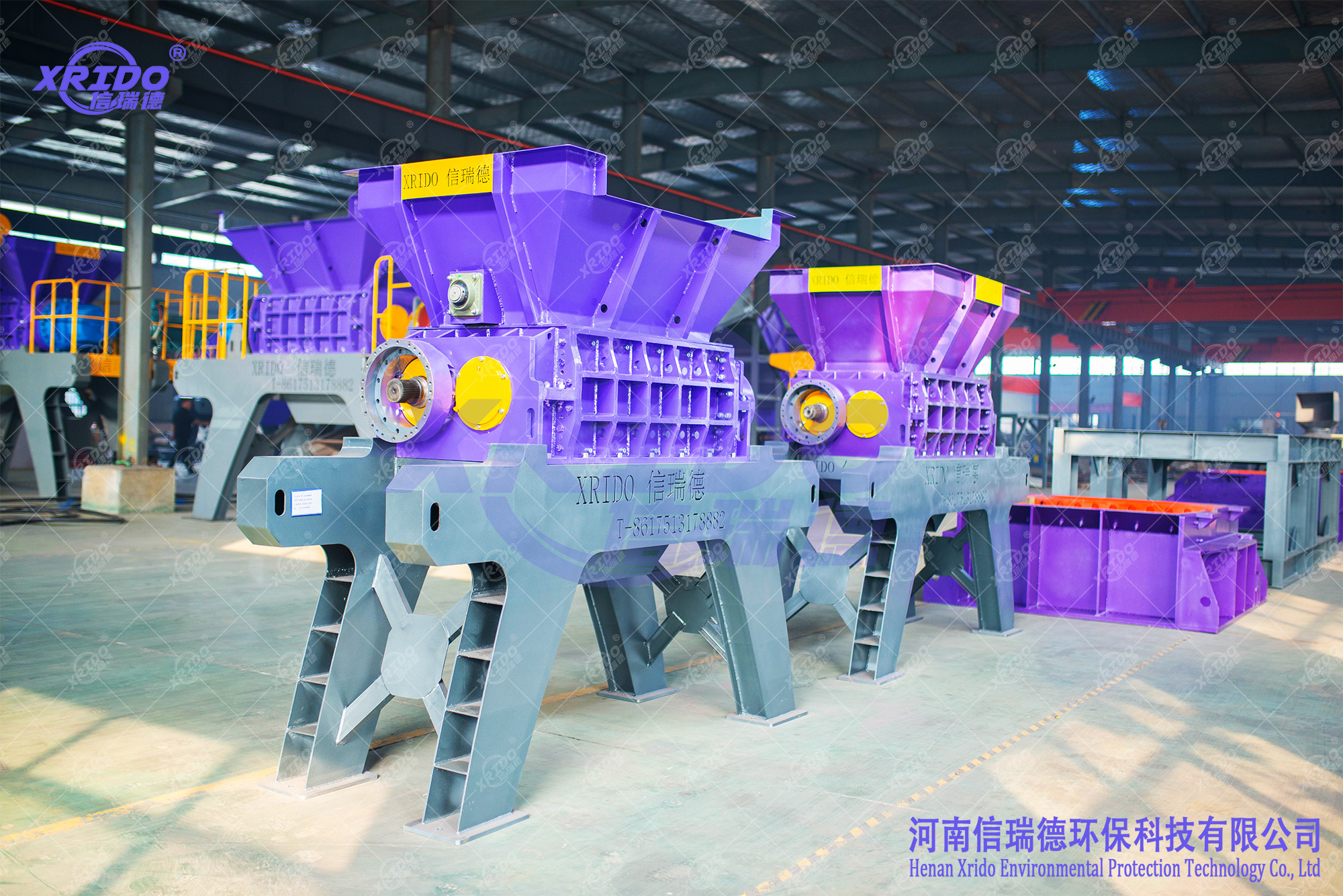

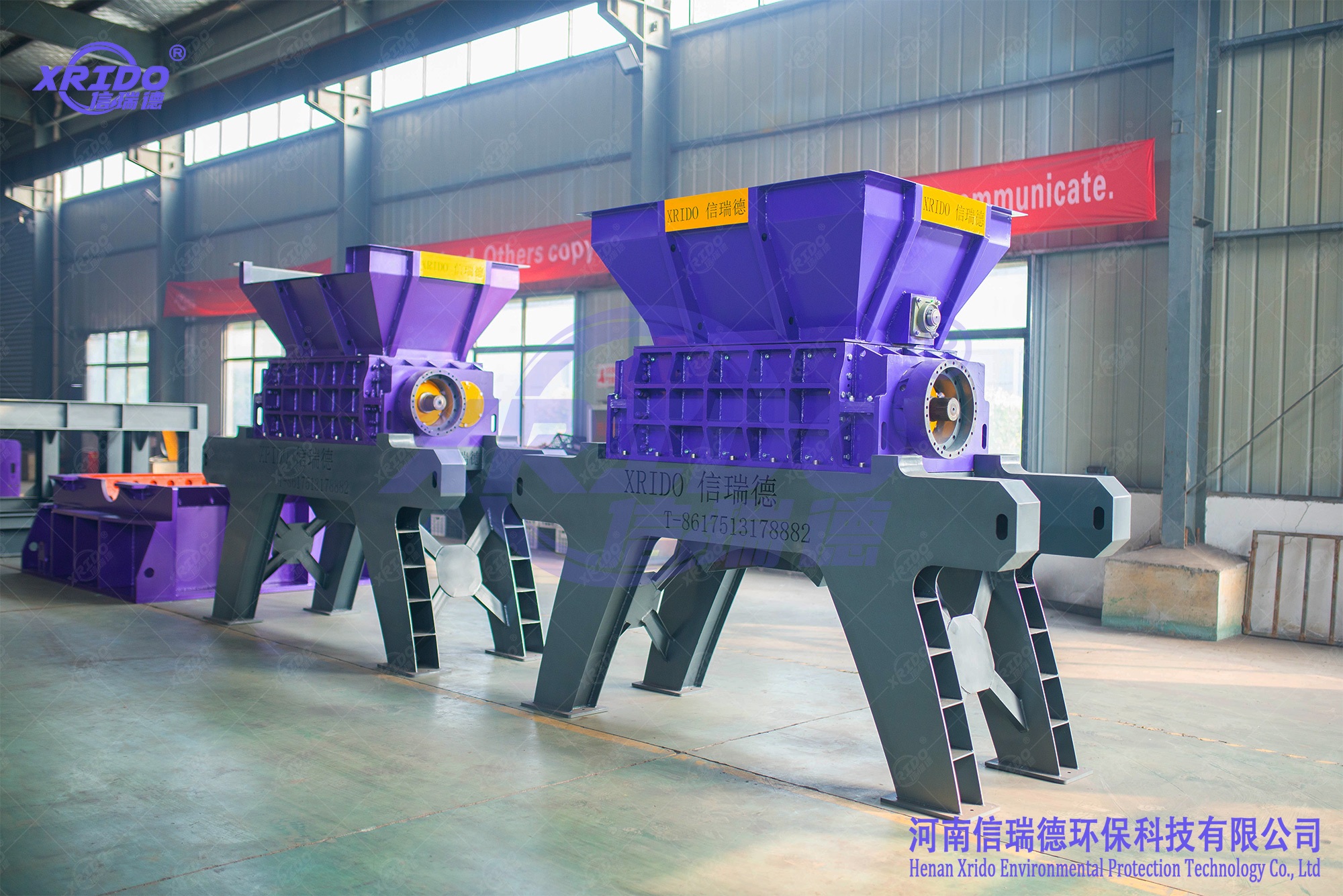

The hard plastic shredder adopts a modular cutter roller system. Alloy steel blades with a diameter of 400-800mm are arranged in a staggered pattern on dual shafts. Each blade undergoes vacuum heat treatment to achieve a hardness of HRC58-62. The transmission system is equipped with dual motor drives (power range 75-375kW), working in conjunction with a planetary reducer to form a stable torque output. A unique anti-winding design, through a screw feeder and anti-jamming sensors, effectively solves the problem of entanglement of film materials. An advanced hydraulic adjustment device allows for precise control of the cutter roller gap (adjustment accuracy ±1mm), adapting to the crushing needs of plastics of different thicknesses.
II. Multidimensional Value in Industrial Applications
In the field of electronic waste treatment, this equipment can break down mixed plastic parts such as waste circuit board shells and connectors into uniform particles of 10-50mm, with a crushing efficiency of 1.5-3 tons/hour. The automotive dismantling industry uses specially configured shredder units to process composite plastic components such as bumpers and dashboards, achieving metal-plastic separation and recycling in conjunction with magnetic separation devices. For the special treatment needs of medical plastic waste, the equipment is equipped with a high-temperature cleaning chamber and an ultraviolet disinfection module to ensure that the crushing process meets biosafety standards.
III. Innovative Directions in Technological Development
The latest generation of shredders introduces an AI intelligent control system, which monitors the wear status of the blades in real time through vibration sensors and automatically optimizes crushing parameters. Blades with a silicon nitride ceramic coating have a service life extended by more than 3 times, and wear-resistant parts manufactured using laser cladding technology reduce maintenance costs by 40%. The environmentally friendly design integrates a bag filter dust collection system and a soundproof enclosure, keeping operating noise below 85 decibels and dust emission concentration below 10mg/m³. The emergence of mobile shredder units further extends processing capacity to plastic pollution sites.
This equipment, which deeply integrates mechanical engineering and materials science, is driving plastic recycling rates from the traditional 35% to 70%. With the application of IoT technology, future intelligent shredding systems will achieve remote monitoring and fault diagnosis, continuously providing strong technical support for the global plastic circular economy.
