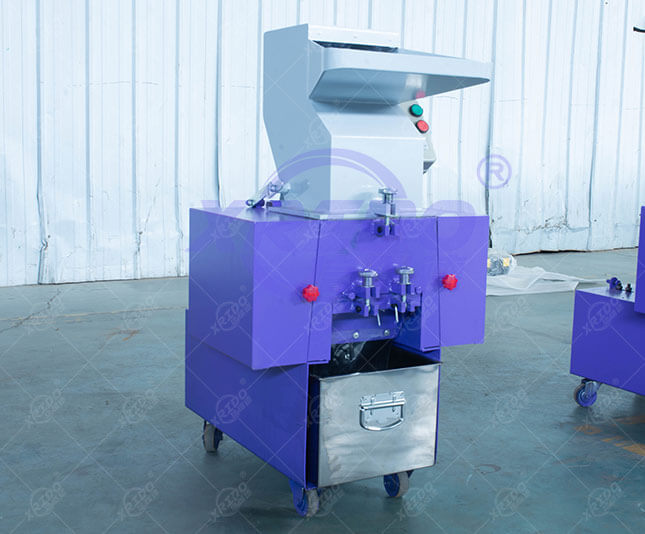

Plastic Waste Shredder
Input Size : Customize
Output Capacity : 400-60000kg/h
Product Application : Waste plastic regeneration industry
Applicable Material : Mineral water bottles, PET bottles, machine oil bottles, gasoline bottles, plastic buckets, plastic trays, plastic baskets and other plastic products.
Product Description
The waste plastic generated can be recycled through shredding, washing, and subsequent granulating, thus producing a reusable recycled material. Aside from recycling, plastic waste can be used for energy generation after shredding.
Our shredder were developed specifically for the processing of plastics. They deal effortlessly with all kinds of plastics, ranging from PP/PE plastic film, big woven bags, plastic buckets, PET bottles and hollow parts to post-consumer and production waste.
APPLICABLE
Waste PP/PE film
Plastic head material
Plastic woven bag
Plastic bucket
-
Head Material
-
PP/PE Film
-
Woven Bag
-
Plastic Bucket
WORKING PRINCIPLE

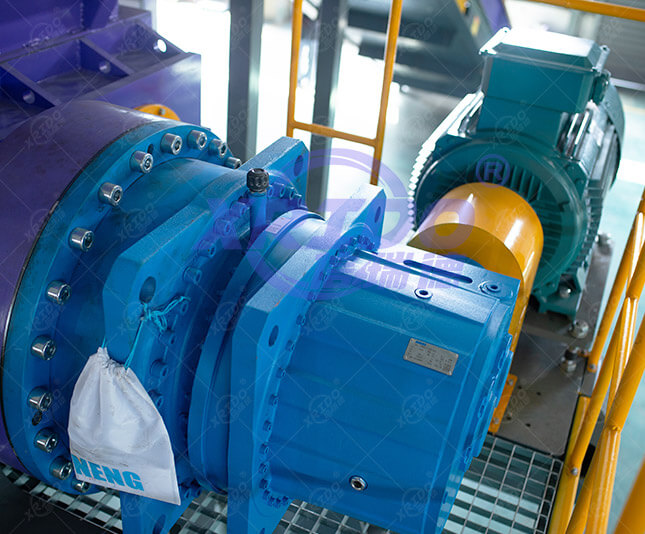

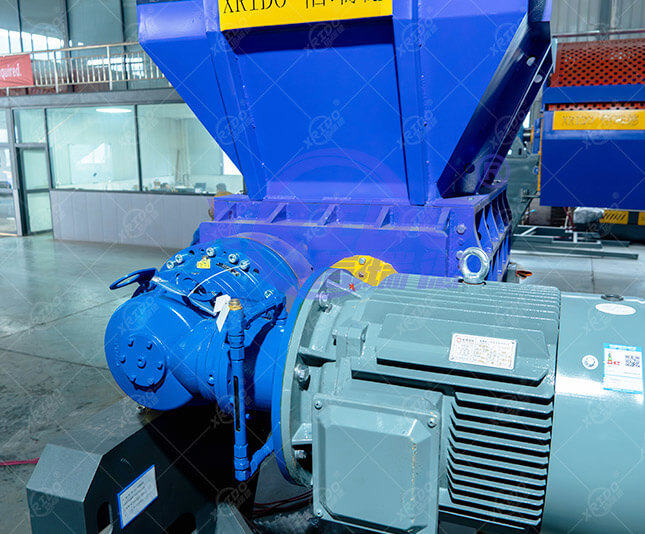

Plastic Shredder is driven by the independently double-roller.During the production the material will be pressed accordingly for automatic feed.During the production process of low speed and high torque,there is no spindle entanglement,or jammed equipment,thus improving the production efficiency, the equipment is suitable for various waste paper products crushing .
FEATURES
1, High performance, strong powerful and high speed crushing.
2, Motor with overload protection device.
3, Supply chain environmental protection system, ensure safe operation.
4, Easy disassembly design, convenient clean-up and repair.
5, Minicomputer with a four-wheel for easy mobility.
6, More than 20HP plastic crusher is equipped with cooling system.
7, Suitable for recycle and restore of all kinds of plastic, particulary for various hard plastic, e.g. blow molded products and shoel last.
FINAL PRODUCT
Technical Parameters
| Model | Overall Size(mm) | Crushing Cavity Size(mm) | Power(kw) | Weight(kg) |
| XRD - SZSS - 500 | 2800×1300×1850 | 500×480 | 11×2 | 2200 |
| XRD - SZSS - 800 | 3000×1300×1850 | 800×480 | 15×2 | 2500 |
| XRD - SZSS - 1000 | 3300×1900×2200 | 1000×690 | 22×2 | 5200 |
| XRD - SZSS - 1200 | 3600×2000×2200 | 1200×690 | 30×2 | 6400 |
| XRD - SZSS - 1500 | 4100×2100×2400 | 1500×850 | 55×2 | 9000 |
| XRD - SZSS - 1800 | 5800×2400×3300 | 1800×1206 | 75×2 | 13600 |
| XRD - SZSS - 2000 | 6400×2700×3500 | 2000×1490 | 90×2 | 20100 |
| XRD - SZSS - 2500 | 7500×3200×3800 | 2500×1800 | 110×2 | 22500 |
| XRD - SZSS - 3000 | 8600×3500×4000 | 3000×1800 | 160×2 | 31000 |
(Special - customized types can be customized according to the size and type of materials.)
