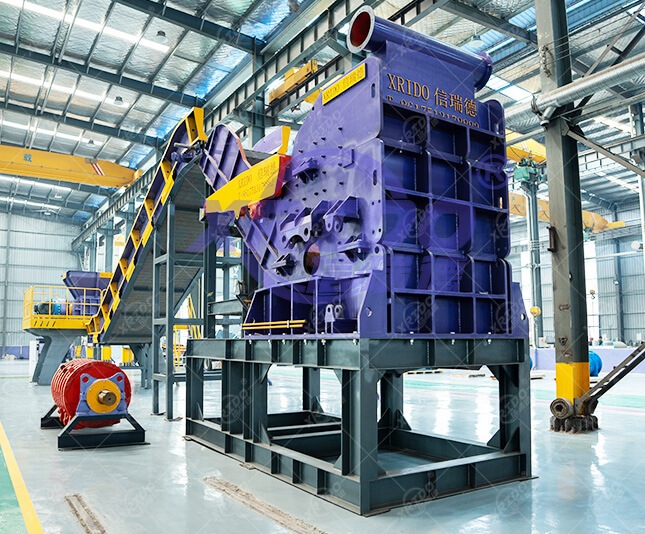

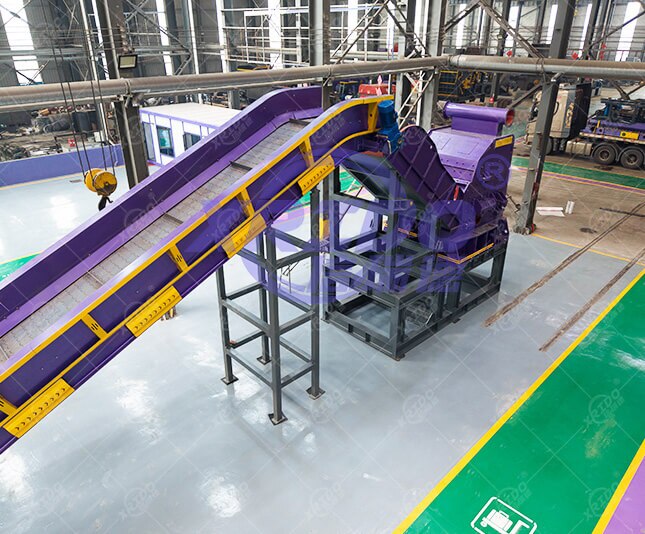

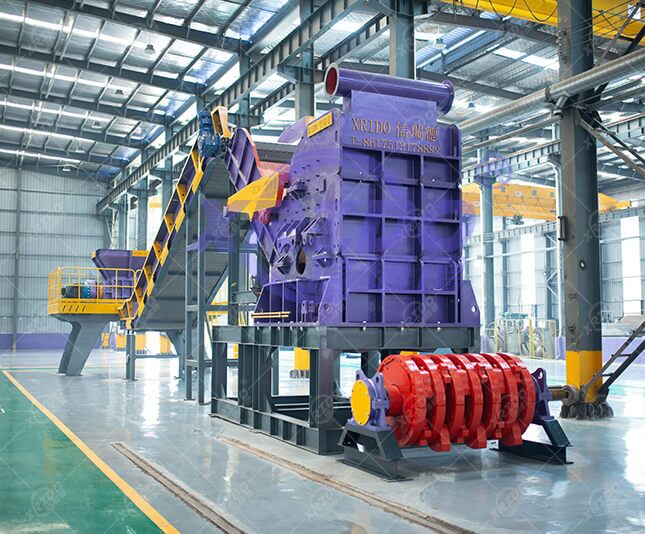

Metal Hammer Mill Crusher
Patented Products
Type : Pre-shredder, Mobile Shredder, Mobile Crusher, Granulators, Powderisers, Material Separation, Sorting Machine, Baler Machine, etc.
Applicable Material : Scrap metal, Scrap steel, Scrap iron, Scrap aluminum, Scrap radiator, Scrap copper, paint drums, diesel drums, thin iron sheets, car shells, metal briquettes, metal plate scraps etc.
Product Description
Metal Hammer Mill Crushers are specialized recycling equipment that uses mechanical forces such as impact, shearing, extrusion, and kneading to crush, shape, and disperse various scrap metal materials into uniformly sized metal granules. They are mainly used for the pre-treatment of scrap steel, aluminum, copper, and other scrap metals for resource recovery, removing attached impurities such as plastics, rubber, paint, and sand, reducing material volume, increasing metal purity, and facilitating transportation, sorting, and remelting in steel mills.
Key equipment of metal crushing and recycling production line:
-
Mobile Crusher
-
Metal Shredder Machine
-
Steel Wire Crusher Cleaning Machine
-
Mobile Scrap Metal Shredding Sorting Line
Applicable materials:
√ Iron cuttings,sheet iron, sheet steel
√ Copper cuttings, sheet copper, Steel cuttings
√ Scrap iron bar, Waste steel wire
√ Waste wire, Waste steel pipe
√ Scrap metal, Scrap iron pipe
Metal crusher is suitable for crushing scrap steel, scrap iron, scrap aluminum and other metals. The metal crusher can be scientifically customized according to the crushed materials and processing capacity.
Metal Crushing Recycling Plant
All equipment in the production line can be increased or decreased according to actual needs. Contact us and give you a list of quotes.
-
Scrap Metal Shredder Sorting Line
-
Copper Aluminum Crushing Production Line
-
Scrap Steel Wire Cleaning System
-
UBC Aluminum Cans Decoating Machine
WORKING PRINCIPLE
The metal crusher is driven by an electric motor to rotate the main shaft at high speed. High-alloy hammers on the rotor impact the scrap metal fed into the chamber. The material is torn and crushed under the combined effects of hammer strikes, impacts from the machine liner plates, and mutual collisions and kneading. Material of the appropriate particle size passes through the bottom screen and is discharged. Larger pieces continue to be repeatedly crushed inside the chamber until they reach the required discharge size. The equipment has overload protection to prevent damage.
FEATURES
● Hydraulic adaptive feeding device.
● high strength impact crushing rotor.
● Automatic exclusion of non-breakable materials.
● super attack, swallow nesting ability, high production efficiency.
● high equipment operation rate, low maintenance cost.
● production process efficiency, low consumption, clean, high degree of automation Non-ferrous metals, steel, non-metallic automatic sorting recovery technology.
● multi-stage dust removal system, the production process clean working and environmentally friendly.
● Removing dust, paint and other impurities, to achieve "concentrate" into the furnace.
Other Metal Recycling Machine
Technical Parameters
| Model | Voltage | Power (kw) |
| XRD - PSJ - 100 | 380v | 90 |
| XRD - PSJ - 120 | 380v | 110 |
| XRD - PSJ - 132 | 380v | 132 |
| XRD - PSJ - 200 | 380v | 200 |
| XRD - PSJ - 315 | 380v | 315 |
| XRD - PSJ - 450 | 380v | 450 |
| XRD - PSJ - 630 | 10kv | 630 |
| XRD - PSJ - 750 | 10kv | 750 |
| XRD - PSJ - 900 | 10kv | 900 |
| XRD - PSJ - 1500 | 10kv | 1200 |
| XRD - PSJ - 6000 | 10kv | 4420 |
| XRD - PSJ - 10000 | 10kv | 7500 |
