Paper Mill Waste Shredder
Input Size : Customize
Output Capacity : 200-10000kg/h
Product Application : Waste paper packaging station, paper factory, document destruction industry, etc
Applicable Material : Waste corrugated paper, paper pipe, paper core, paper roll, paper, hard paper, book paper, newspaper, jam paper and other paper materials
Product Description
You can shred waste paper, cardboard, and rolls of paper with our shredders, improving the return on your paper recycling.
With so many options, we can optimize your shredder for your specific material, guaranteeing the best possible performance.
-
Pape Mill waste
-

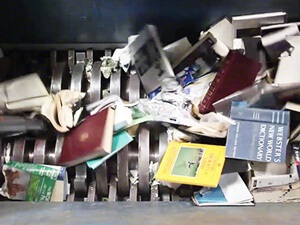

Magazines/Book destruction
-
Pulper Rope waste
-
Paper waste
APPLICABLE
Paper and paper mill waste
Pulp ropes
Other industrial and domestic waste +
WORKING PRINCIPLE
Waste Paper Shredder is driven by the independently double-roller.During the production the material will be pressed accordingly for automatic feed .During the production process of low speed and high torque, there is no spindle entanglement, or jammed equipment,thus improving the production efficiency, the equipment is suitable for various waste paper products crushing .
FEATURES
● Low speed, large torque, Low noise, low dust;
● Hydraulic feeding system, swinging arm forced feeding structure; 180° turnover, the knife body utilization rate is higher;
● Reduction gearbox swinging arm installation structure, micro switch monitoring, protect the internal gear and motor;
● Imported SKD11, D2, DC53, ASP60 blades, high strength, wear resistance, long life;
● Feeding test for 80~100 hours before delivery to ensure the reliability of the equipment.
FINAL PRODUCT
Technical Parameters
| Model | Overall Size(mm) | Crushing Cavity Size(mm) | Power(kw) | Weight(kg) |
| XRD - SZSS - 500 | 2800×1300×1850 | 500×480 | 11×2 | 2200 |
| XRD - SZSS - 800 | 3000×1300×1850 | 800×480 | 15×2 | 2500 |
| XRD - SZSS - 1000 | 3300×1900×2200 | 1000×690 | 22×2 | 5200 |
| XRD - SZSS - 1200 | 3600×2000×2200 | 1200×690 | 30×2 | 6400 |
| XRD - SZSS - 1500 | 4100×2100×2400 | 1500×850 | 55×2 | 9000 |
| XRD - SZSS - 1800 | 5800×2400×3300 | 1800×1206 | 75×2 | 13600 |
| XRD - SZSS - 2000 | 6400×2700×3500 | 2000×1490 | 90×2 | 20100 |
| XRD - SZSS - 2500 | 7500×3200×3800 | 2500×1800 | 110×2 | 22500 |
| XRD - SZSS - 3000 | 8600×3500×4000 | 3000×1800 | 160×2 | 31000 |
(Special - customized types can be customized according to the size and type of materials.)
