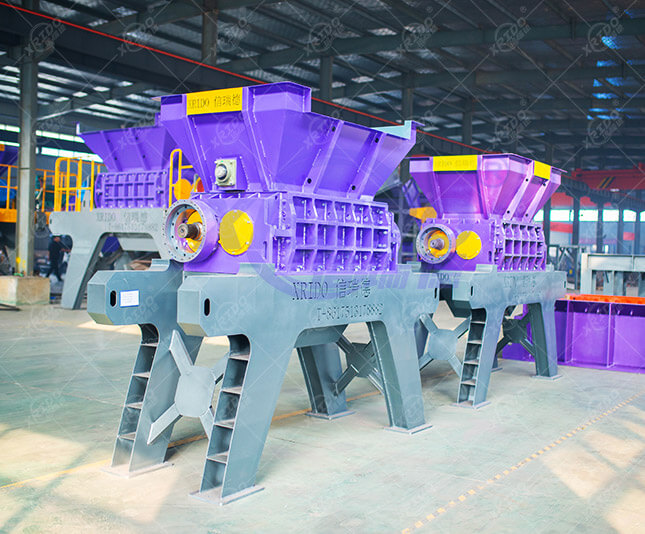

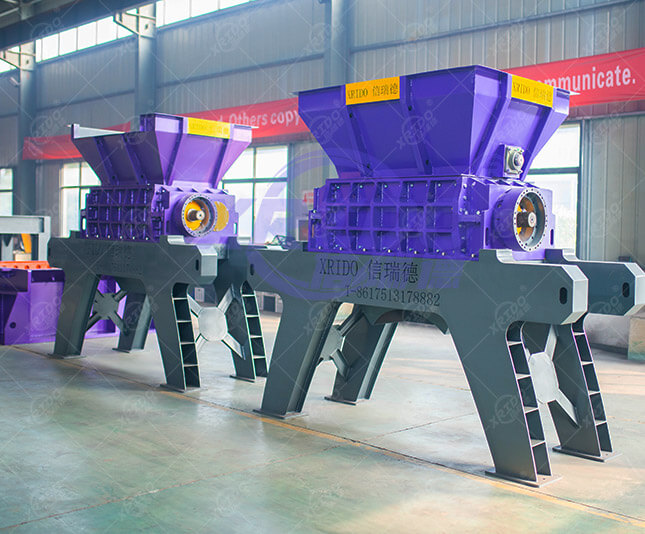

Industrial Waste Shredder
Patented Products
Type : Industrial Shredder, Single shaft shredder, Metal Shredder, Solid waste disposal system.
Applicable Material : Sponge, Textile, Nylon and Polyester, Leather, Wood, industrial waste, Plastics, Waste blue drum, Waste Metal, Solid waste etc.
Product Description
A modern industrial shredder is a highly efficient, intelligent, and versatile material shredder designed specifically for processing various types of industrial waste, bulky scrap, or high-hardness materials. Its core function is to break large, high-strength, or complex materials (such as metal, plastic, rubber, wood, and electronic waste) into uniform, small pieces (typically 10-100mm in size, adjustable to meet specific needs) through mechanical shearing, squeezing, and tearing. This equipment facilitates subsequent recycling, reprocessing, or environmentally friendly disposal. Integrating modular design, automated control, environmentally friendly technologies, and adaptability for diverse scenarios, this equipment is widely used in resource recovery, solid waste treatment, industrial production, and other fields, making it a key component of the modern industrial circular economy.
The industrial waste processing line developed by Xrido can transform industrial waste into high-quality high calorific value SRF/RDF, which can be used as fuel instead of fire coal, thus realizing the conversion of waste into energy. This processing line is mainly aimed at relatively pure waste leather, commercial waste plastics and other high calorific value solid waste, for more complex waste can be equipped with screen and density air sorting machine to complete the target to be processed. High torque double shearing shredder and special single shaft shredder for SRF/RDF will be used in the system. After secondary shredding, the material size can reach 30-80 mm (based on the requirement), and the standard-reaching rate is higher than 95%.
Everything can be shredded
Applicable Industrial Waste Shredder Material:
Industrial shredders can crush common industrial solid waste types such as metals (such as scrap steel, aluminum profiles, copper cables), plastics (such as PE, PP, PVC films, pipes), rubber (such as tires, seals), wood (such as tree trunks, furniture waste), electronic waste (such as circuit boards, cables), and composite materials (such as fiberglass, carbon fiber).

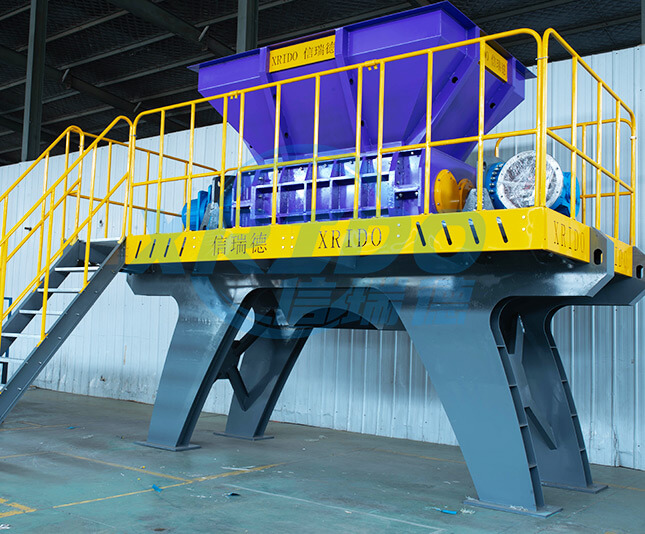

The Double Shaft Shredder adopts dual-shaft independent drive, so that during production, the material is pressed accordingly, and the automatic feeding function is achieved. There will be no phenomenon of shaft wrapping or jamming of the equipment, thus improving the production efficiency. The equipment is suitable for the crushing of various tough and viscous materials.
Providing one-stop Solution
The company's main products include double-axis shredders, metal crushers, solid waste disposal equipment and renewable resource equipment to meet the needs of different customers. By providing a one-stop solution, XRIDO Group can helps customers solve various solid waste treatment problems.

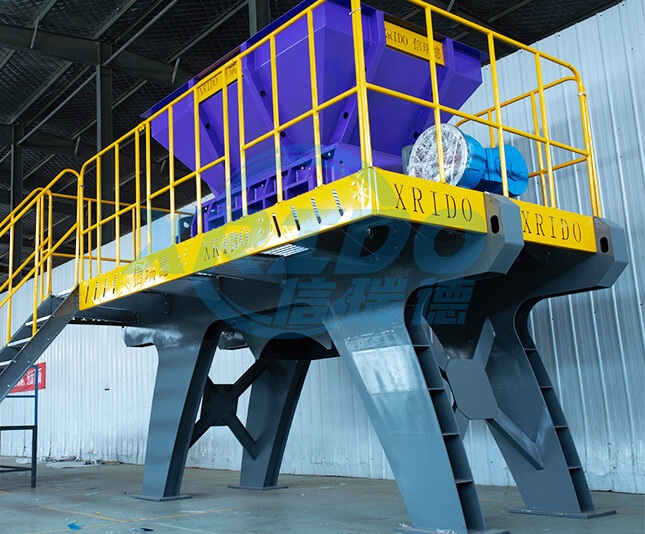

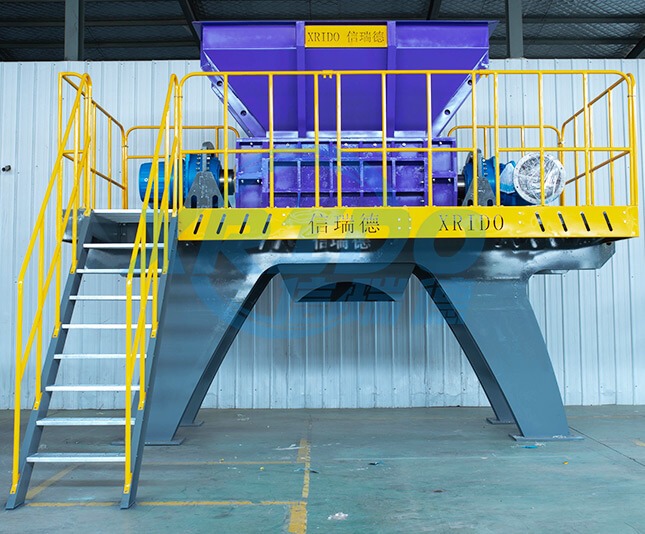

Solid Waste Management Machine Show:
-

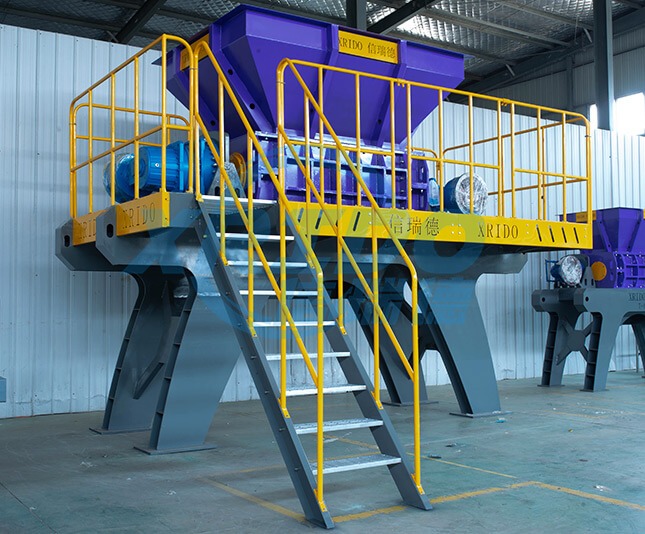

Shredder Machine
-
Crusher Machine
-
RDF Machine
-
Baler Machine

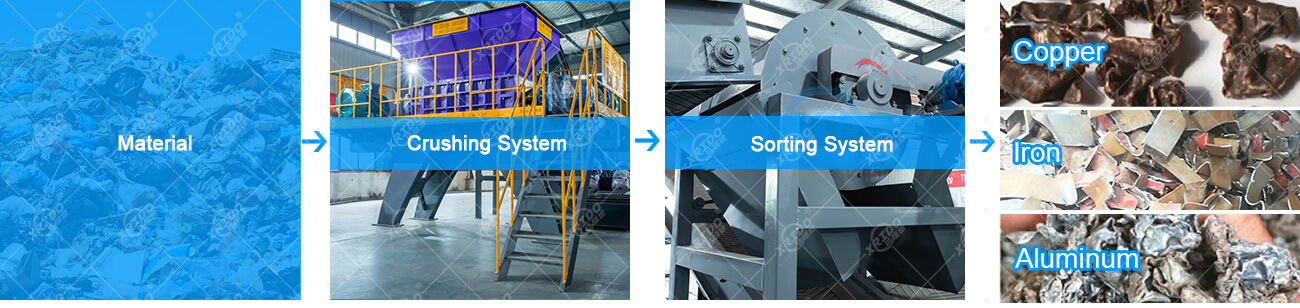

Waste crushing, sorting and recycling system:
The solid waste disposal system can be customized according to the actual materials.-
Solid Waste Disposal System
-

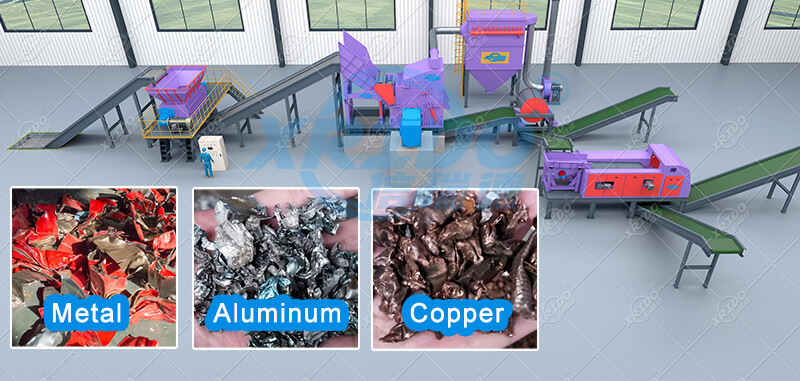

Waste Metal Recycling System
-
MSW to RDF briquette Plant
-

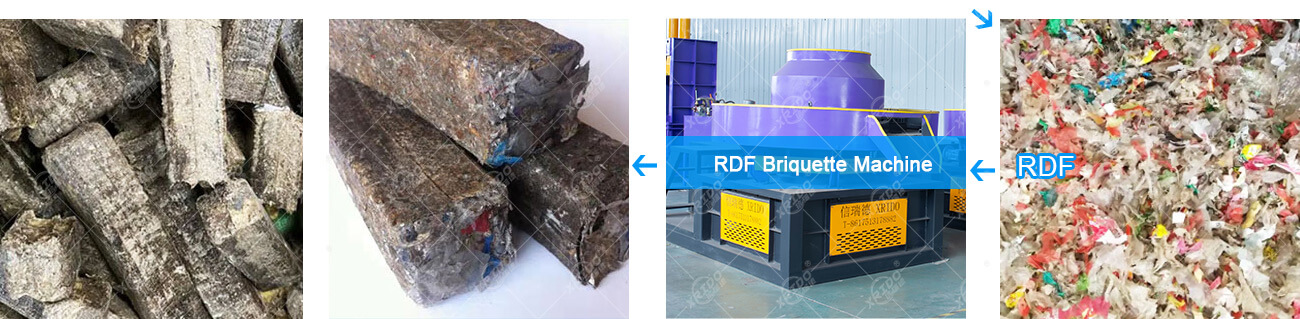

Industrial Waste to RDF briquette Plant
WORKING PRINCIPLE
A modern industrial shredder utilizes multi-axis shearing, squeezing, and impact crushing technology, combined with intelligent control.

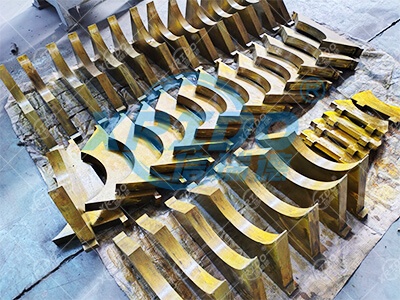

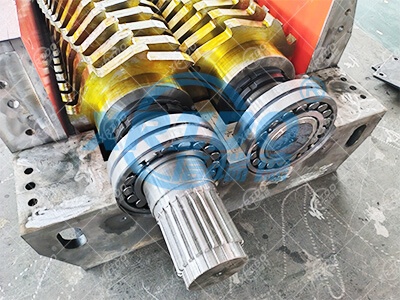

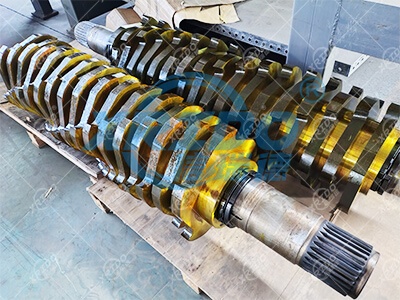

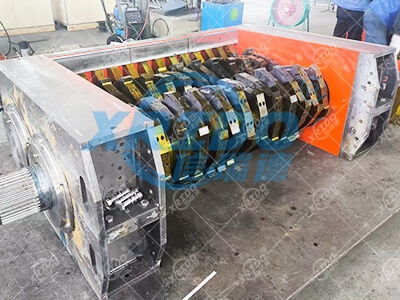

• Multi-axis shearing (core mechanism): The shredder is equipped with multiple sets of rotating (moving) and fixed (stationary) blades. The blades are constructed from high-hardness alloy steel (such as H13, SKD11, or tungsten steel), vacuum-hardened, and surface-coated (such as TiN/TiAlN) for exceptional wear and impact resistance. The rotating blades are driven by a motor at high speed (10-40 rpm, primarily low-speed), generating a powerful shearing force against the fixed blades, tearing the material into small pieces. Some models further crush the material by squeezing the gap between the rotating blades.
• Intelligent speed and load control: A variable frequency motor or hydraulic system adjusts the blade speed and torque to accommodate different materials (e.g., soft plastic vs. hard metal) and feed density, preventing overload shutdowns. Some models integrate integrated sensors to monitor motor current and blade wear in real time, automatically adjusting operating parameters.
Process:
Key Design Features:
• Modular Tool System: The tool can be quickly removed and replaced, supporting various tooth profiles (such as corrugated teeth, straight-edged teeth, and serrated teeth) to adapt to different material properties (e.g., plastics require sharp teeth, metals require high-strength teeth);
• Low Speed, High Torque: Compared to traditional crushers (which often operate at speeds >100 rpm), industrial shredders typically operate at lower speeds (10-40 rpm), reducing energy consumption, lowering noise levels (<85 dB), and preventing material overheating and oxidation (especially critical for metal and rubber recycling);
• Intelligent Control: A PLC or industrial computer system monitors operating status (such as tool wear, motor load, and feed speed) in real time, supporting remote operation, fault diagnosis, and automatic alarms, reducing manual intervention.
FINAL PRODUCT
Discharge particle size can be customized.

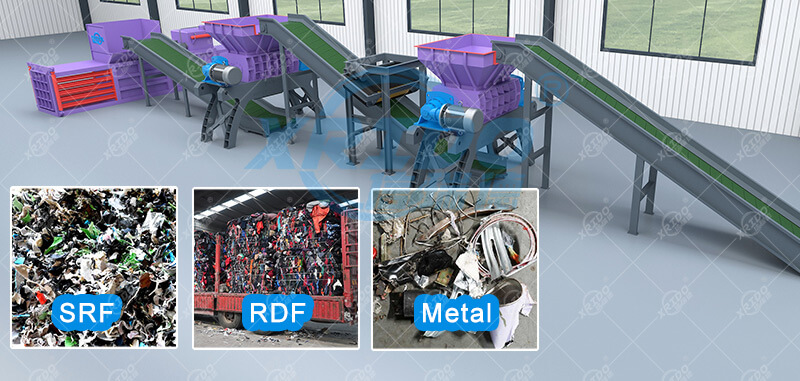

Case of Industrial Waste processing system:
Technical Parameters
| Model | Power (KW） | Rotating speed (r/min） | Dimensions L/W/H（mm） | Crushing cavity size C/D(mm) | Diameter of knife body （mm） |
| XR-56 | 15+15 | 6-20 | 2800×1300×1850 | 600×500 | 220 |
| XR-58 | 18.5+18.5 | 6-20 | 3000×1300×1850 | 800×500 | 220 |
| XR-710 | 30+30 | 6-20 | 3300×1900×2200 | 1000×700 | 320 |
| XR-812 | 37+37 | 6-20 | 3600×2000×2200 | 1200×800 | 400 |
| XR-815 | 45+45 | 6-20 | 4180×2100×2400 | 1500×850 | 450 |
| XR-918 | 75+75 | 6-20 | 5800×2400×3300 | 1800×900 | 500 |
| XR-1020 | 90+90 | 6-20 | 6400×2700×3500 | 2000×1000 | 600 |
| XR-1522 | 110+110 | 6-20 | 7800×3200×3800 | 2200×1500 | 800 |
