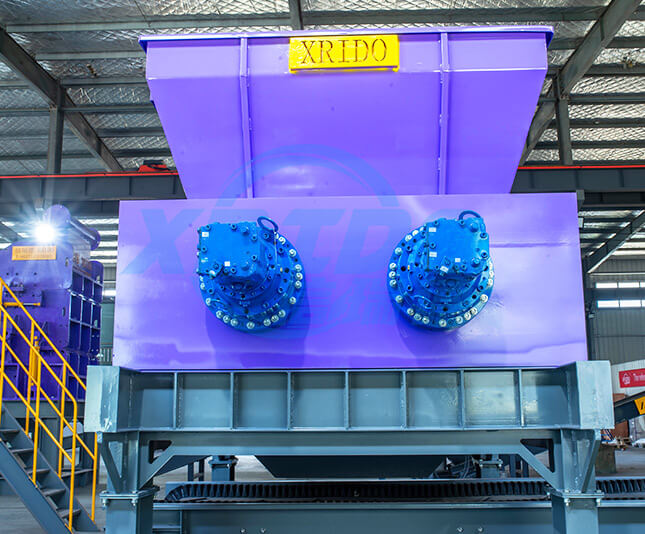

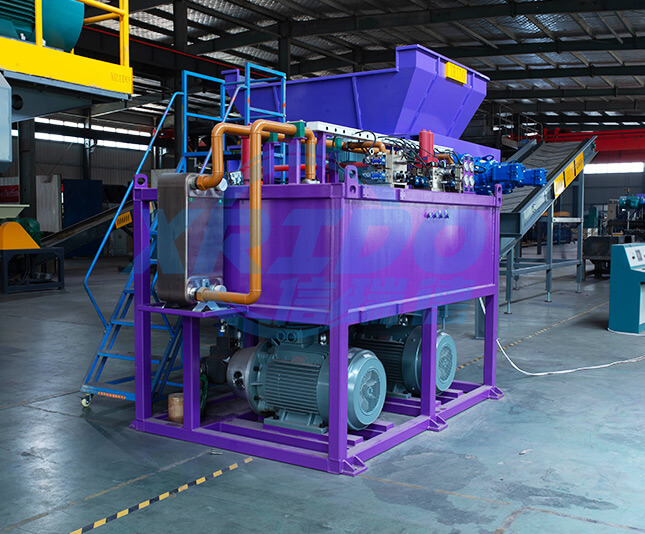

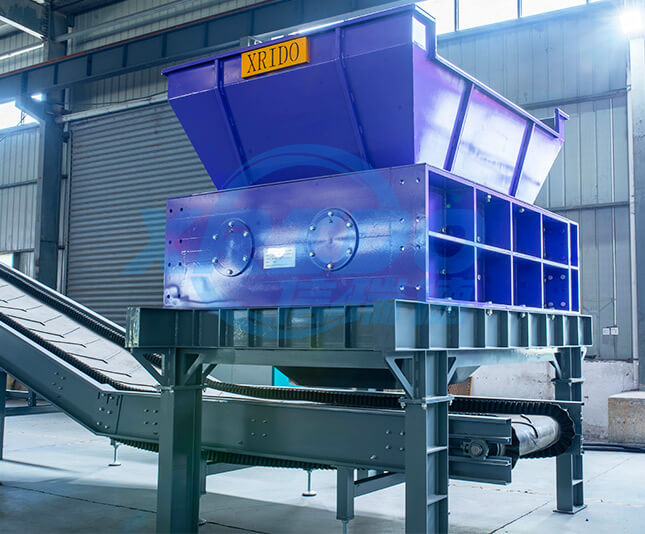

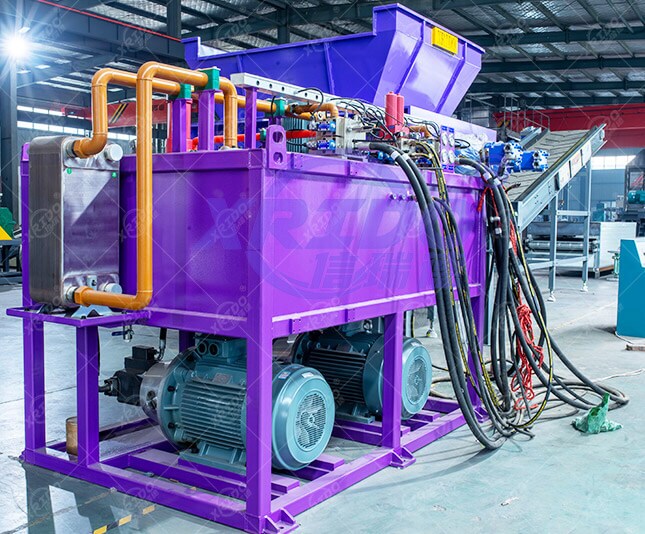

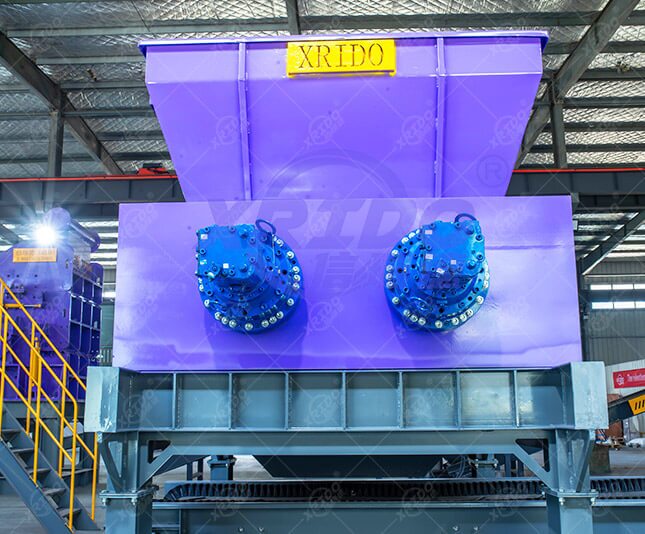

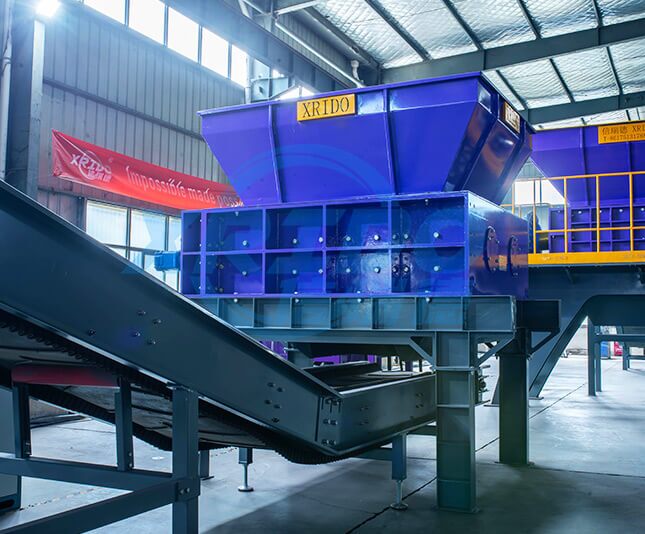

Bulky Waste Shredder

Applicable Material : Furniture, Mattress, Sofa, Refrigerator, Home appliances, Construction and decoration waste, Other large objects.

Product Description

Large furniture shredder is a kind of equipment specially used for processing large pieces of garbage such as old furniture. It can tear large and strong furniture (such as sofas, mattresses, cabinets, etc.) into smaller pieces or strips for subsequent transportation, recycling or disposal.

Large furniture shredder provides efficient and environmentally friendly solutions for the treatment of large pieces of garbage through efficient crushing technology and intelligent control. It is an indispensable equipment in the field of modern urban solid waste treatment and resource recycling.

Everything can be shredded

Bulky waste processing system:

  • case of Bulky Waste Shredder
  • case of Bulky Waste Shredder
  • case of Bulky Waste Shredder
  • case of Bulky Waste Shredder

Working principle of large furniture shredder:

• Feeding:

Large pieces of furniture are fed into the feed port of the shredder through a conveyor belt or a hydraulic pusher.

• The feed port is usually equipped with a hydraulic pressing device to push the material into the crushing area through reciprocating motion.

• Crushing:

• Double-axis shearing crushing: There are two relatively rotating knife shafts inside the shredder, and the knife shafts are equipped with staggered moving knives and fixed knives.

• The moving and fixed knives break down large furniture into small pieces through shearing, tearing and squeezing.

• The knives are designed with spiral or staggered teeth to enhance shearing efficiency.

• Discharging:

• The crushed material is discharged through the screen, and the screen aperture can be adjusted according to the discharge requirements (usually 10-100mm).

• The material that does not meet the particle size requirements will return to the crushing chamber for further processing.

Applicable Waste Disposal System Material:

  • Bulky Waste
  • Bulky Waste
  • Bulky Waste
  • Bulky Waste
  • Domestic-Waste
  • Domestic-Waste
  • Domestic-Waste
  • Bulky-Waste

FINAL PRODUCT

  • Bulky Waste
  • Bulky Waste
  • Bulky Waste
  • Bulky Waste

Discharge particle size can be customized.

Bulky Waste Dispose Process:

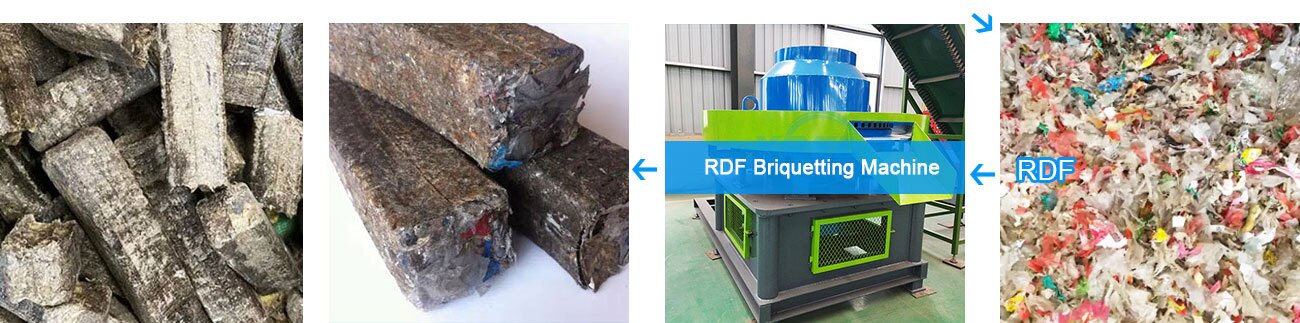

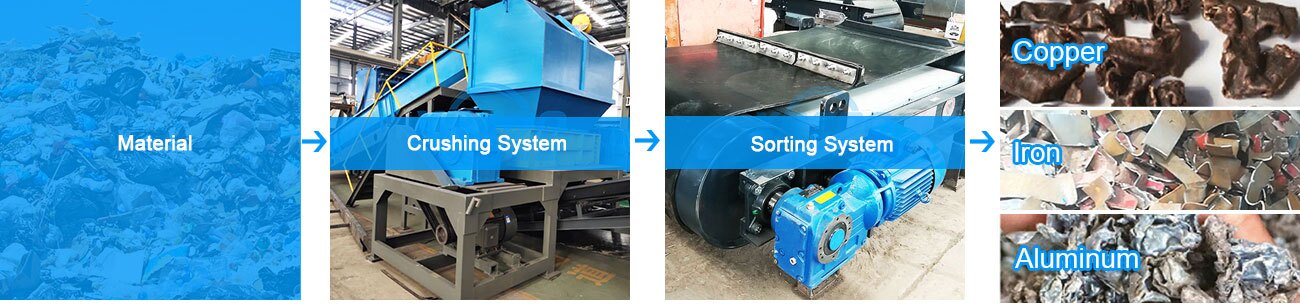

Solid waste disposal system Solid waste disposal system

Technical Parameters

Model Power (KW) Rotating speed (r/min) Dimensions L/W/H(mm) Crushing cavity size C/D(mm) Diameter of knife body (mm)
XR-56 15+15 6-20 2800×1300×1850 600×500 220
XR-58 18.5+18.5 6-20 3000×1300×1850 800×500 220
XR-710 30+30 6-20 3300×1900×2200 1000×700 320
XR-812 37+37 6-20 3600×2000×2200 1200×800 400
XR-815 45+45 6-20 4180×2100×2400 1500×850 450
XR-918 75+75 6-20 5800×2400×3300 1800×900 500
XR-1020 90+90 6-20 6400×2700×3500 2000×1000 600
XR-1522 110+110 6-20 7800×3200×3800 2200×1500 800
