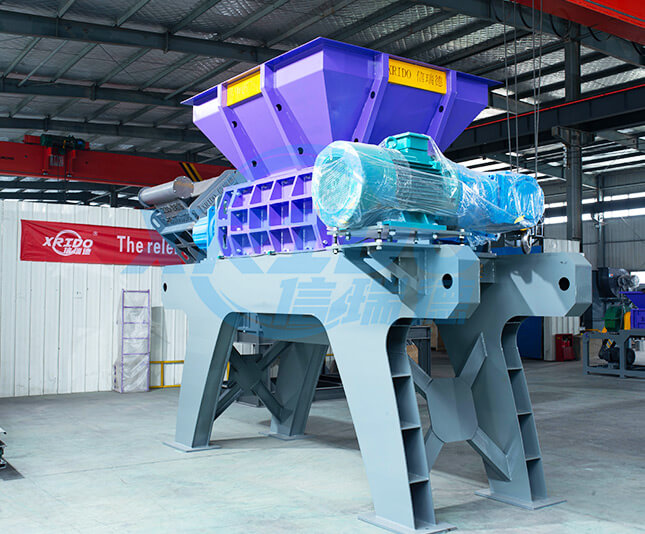

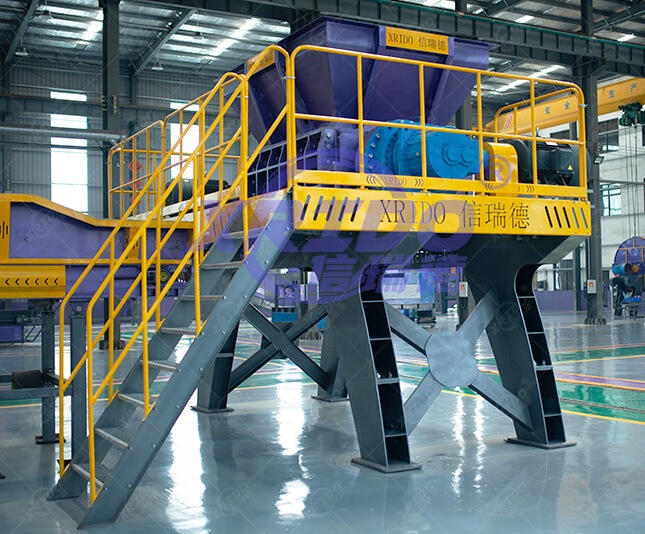

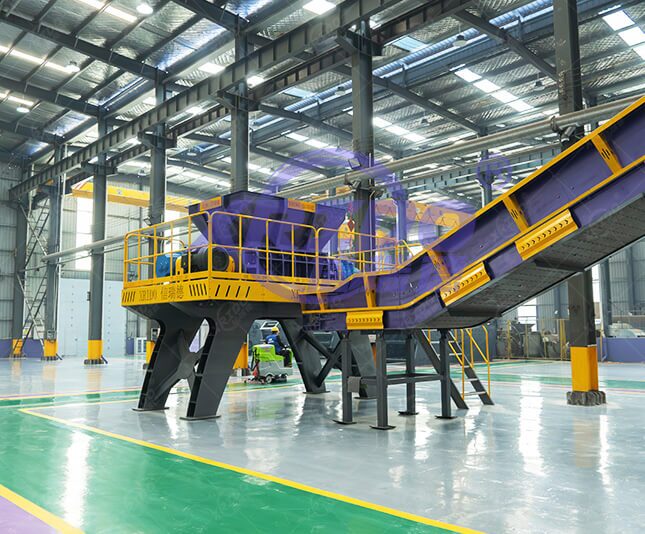

Wood Shredder / Sawdust Machine
Output Capacity : 5-45t/h
Product Application : sawdust machine work for all kinds of dry and wet branches, miscellaneous wood, leftovers, furniture, logs, raw bamboo, straw and other wood materials.
Applicable Material : Wood ,furniture factory side and corner materials, waste furniture, wooden trays, building templates, logs, branches, tree piers, tree roots
Product Description
The wood shredder can process wood, branches and other raw materials into sawdust at one time, with the advantages of low investment, low energy consumption, high productivity, good economic benefits, and convenient use and easy maintenance. The sawdust machine is especially suitable for the processing of wood chips in the edible fungus culture medium, and is mainly composed of a chipping device, a pulverizing device and a fan.
The wood crusher will turn a large amount of green waste ,which difficult to dispose into treasure, and exert new economic value. At the same time, which also protects the environment, improves the soil, and creates good social benefits.
The large straw pulverizer can be driven by motor and diesel engine. The main machine is composed of feeding mechanism, cutting mechanism, throwing mechanism, transmission mechanism, traveling mechanism, protective device and frame. It has the characteristics of reasonable structure, convenient movement, automatic feeding and reliable performance.
Applicable Wood Shredder Material:
Working Principle
The internal structure of wood crusher is mainly composed of upper body, inner liner plate crushing blade, lower body, rotor, fan, discharge pipe, chassis, bag filter and so on. The liner plate of the large-scale tree shredder equipment increases the thickness of the equipment; the large-scale tree shredder dust removal equipment solves the problem of dust pollution more humanely.
The wood shredder mainly adopts blade cutting and high-speed airflow impact, and the collision and double shredding functions are integrated, and can simultaneously complete the micro-material sorting and processing process. During the process of blade cutting and pulverization, the rotor generates high-speed airflow, which rotates with the cutting direction of the blade, and the material is accelerated in the airflow, and the repeated impact causes the material to be double-pulverized at the same time, which accelerates the pulverization rate of the material.

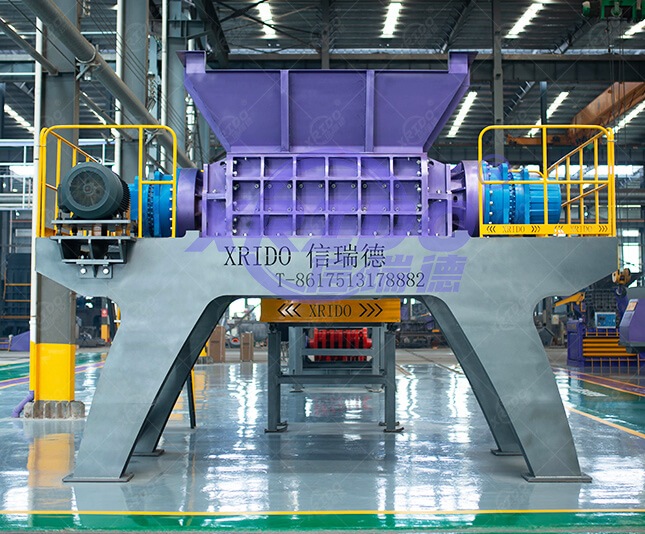

Wood shredder is driven by the independently double-roller.During the production the material will be pressed accordingly for automatic feed.During the production process of low speed and high torque,there is no spindle entanglement,or jammed equipment,thus improving the production efficiency,the equipment is suitable for Various materials of high toughness and viscosity.

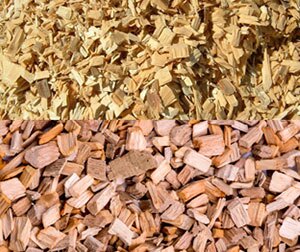

FINAL PRODUCT
You can turn the crushed material into fuel rods
FEATURES
Wood shredder is a special equipment for the production of sawdust (wood powder), widely used in the material preparation section and single sawdust ( Wood flour), the cutting raw materials of the large branch crusher are mainly logs and branches. The wood shredder can also be used to process pine, miscellaneous wood, poplar, fir, raw bamboo and other materials, more suitable for the processing of sawdust in edible fungus culture medium. At the same time, the scrap pulverizer can also be used for cutting chips of fibrous stalk-like materials such as bamboo, thatch, corn stalk, and sorghum stalk.
Technical Parameters
| Model | Overall Size(mm) | Crushing Cavity Size(mm) | Power(kw) | Weight(kg) |
| XRD - SZSS - 500 | 2800×1300×1850 | 500×480 | 11×2 | 2200 |
| XRD - SZSS - 800 | 3000×1300×1850 | 800×480 | 15×2 | 2500 |
| XRD - SZSS - 1000 | 3300×1900×2200 | 1000×690 | 22×2 | 5200 |
| XRD - SZSS - 1200 | 3600×2000×2200 | 1200×690 | 30×2 | 6400 |
| XRD - SZSS - 1500 | 4100×2100×2400 | 1500×850 | 55×2 | 9000 |
| XRD - SZSS - 1800 | 5800×2400×3300 | 1800×1206 | 75×2 | 13600 |
| XRD - SZSS - 2000 | 6400×2700×3500 | 2000×1490 | 90×2 | 20100 |
| XRD - SZSS - 2500 | 7500×3200×3800 | 2500×1800 | 110×2 | 22500 |
| XRD - SZSS - 3000 | 8600×3500×4000 | 3000×1800 | 160×2 | 31000 |
(Special - customized types can be customized according to the size and type of materials.)
