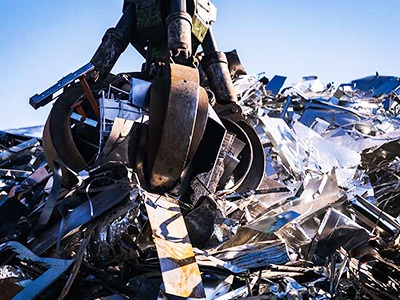

Application Fileds: General metal scrap derived from the collection of metal waste, aluminum, copper, bronze, brass; Aluminum scrap, aluminum cans, aluminum profiles, aluminum locks; Aluminum locks, Aluminum wires, cables; Light waste collection, metallic containers and drums, iron pipes, inert warlike devices; Aluminum sheet radiators, heat exchangers; White goods: washing machine, air conditioner; Household and office appliances; Sorted light scrap; End-of-life vehicles (ELVs)

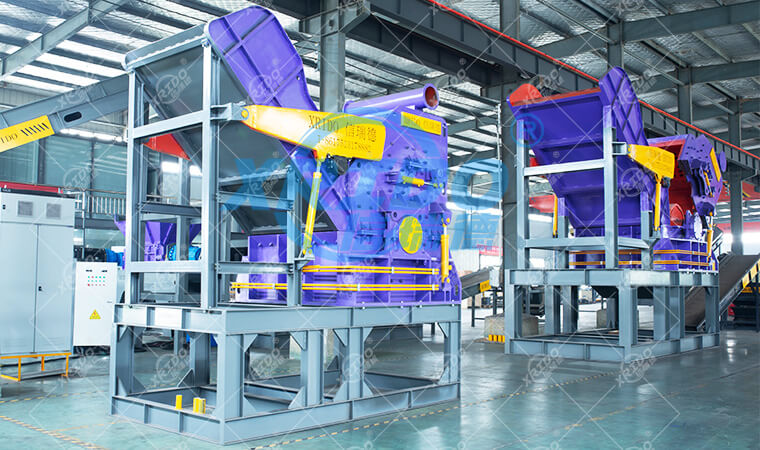

Scrap Metal Shredder(metal shredding machine) is a treatment of non-ferrous metal and aluminum waste. The aim is to obtain homogeneous materials differentiated by type and size for the subsequent transformation phases in the iron and steel industry. The correct preparation of the scrap in terms of quality and size increases the added value of the metal recycling plants. When it comes to which machines to use to size reduce metal, we will always analyze your requirements together and determine the right unit with regard to input material, throughput and desired size of the granulate.

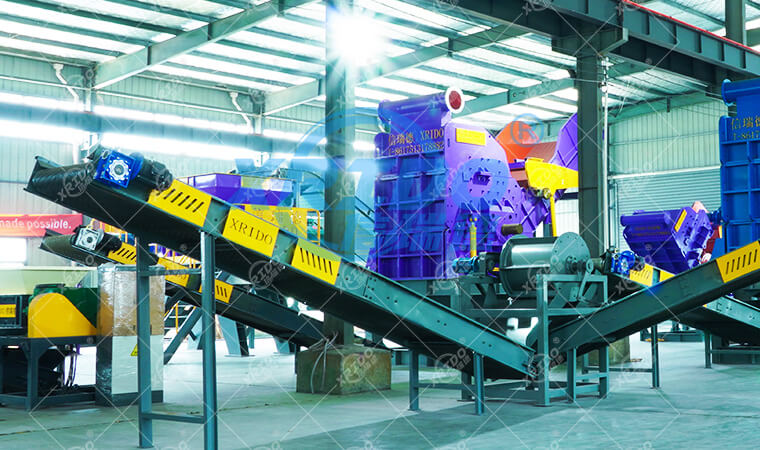

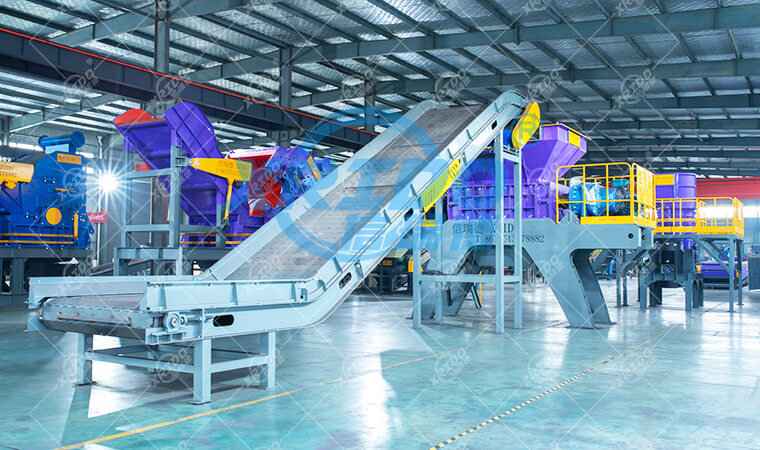

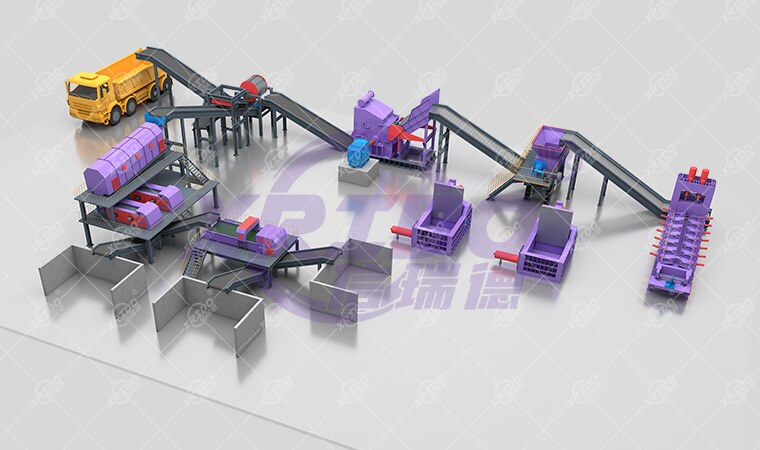

The plants and equipment of Xrido recycling , suitably combined and globally proven, allow the maximum valorization of the metal components through demolition, crushing and separation process with the use of two-shaft shredders and four-shaft shredders and magnetic separation systems.
● Scrap metal shredder can be customized according to user's requirements;
● Scrap metal shredder has a low speed, high torque, low noise, compact design;
● Scrap metal shredder with a special material, long life, high utilization rate; knives can be exchanged easily and quickly;
● In case the scrap metal shredder is overloaded or foreign objects are in the cutting unit, the rotor stops and moves backward automatically to prevent overfeeding and protect against damage from foreign objects.
√ Iron cuttings,sheet iron, sheet steel
√ Copper cuttings, sheet copper, Steel cuttings
√ Scrap iron bar, Waste steel wire
√ Waste wire, Waste steel pipe
√ Scrap metal, Scrap iron pipe

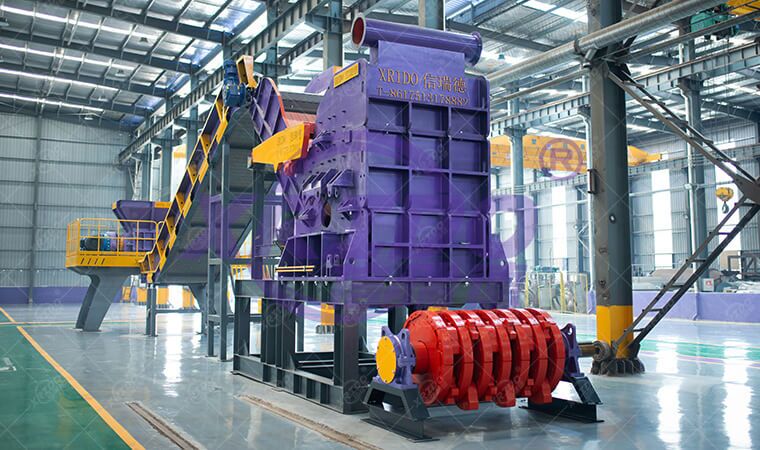

Metal crusher is suitable for crushing scrap steel, scrap iron, scrap aluminum and other metals. The metal crusher can be scientifically customized according to the crushed materials and processing capacity.
| Model | Power (KW） | Rotating speed (r/min） | Dimensions L/W/H（mm） | Crushing cavity size C/D(mm) | Diameter of knife body （mm） |
| XR-56 | 15+15 | 6-20 | 2800×1300×1850 | 600×500 | 220 |
| XR-58 | 18.5+18.5 | 6-20 | 3000×1300×1850 | 800×500 | 220 |
| XR-710 | 30+30 | 6-20 | 3300×1900×2200 | 1000×700 | 320 |
| XR-812 | 37+37 | 6-20 | 3600×2000×2200 | 1200×800 | 400 |
| XR-815 | 45+45 | 6-20 | 4180×2100×2400 | 1500×850 | 450 |
| XR-918 | 75+75 | 6-20 | 5800×2400×3300 | 1800×900 | 500 |
| XR-1020 | 90+90 | 6-20 | 6400×2700×3500 | 2000×1000 | 600 |
| XR-1522 | 110+110 | 6-20 | 7800×3200×3800 | 2200×1500 | 800 |
