E Waste Shredder
Patented Products
Type : Pre Shredder, Mobile Shredder, Double Shaft Shredder, Metal Shredder, Industrial Shredder, Solid waste disposal system.
Applicable Material : E-waste, Scrap PCBs, Waste Lithium Batteries, PV Solar Panels, Scrap Home Appliances, Waste Cables, Various Electronic Components, Waste Circuit Boards, etc.
Product Description

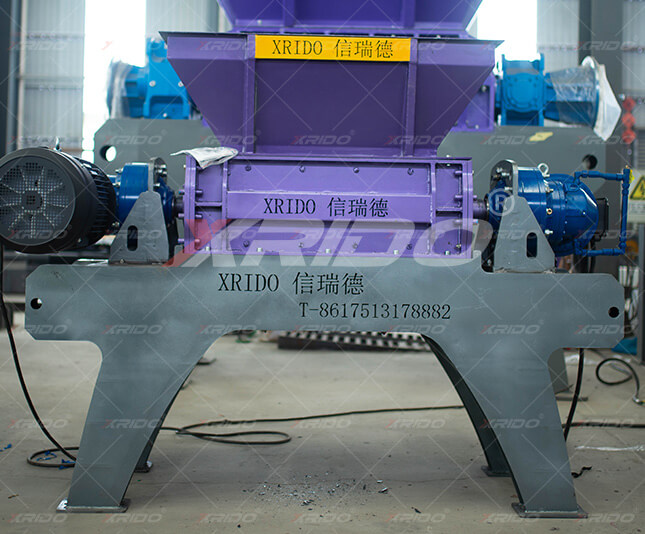

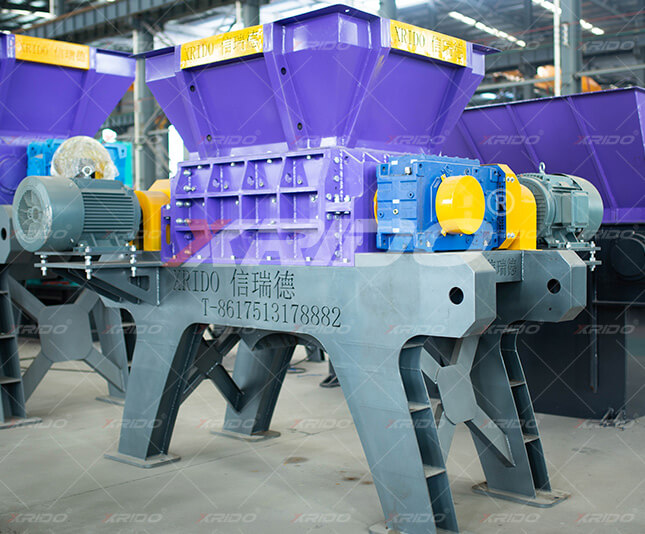

An e-waste shredder (typically a dual-shaft shear shredder) is specialized equipment for the pre-treatment and recycling of electronic waste. It shreds discarded electronic products—comprising mixed metals, plastics, and glass—into smaller fragments. This process reduces volume and facilitates the liberation of metallic and non-metallic components, thereby easing subsequent sorting and recovery steps such as magnetic and air separation. It serves as the initial processing stage for converting electronic solid waste into reusable resources.
-
Pre Shredder
-
Fine Crusher
-
Scrap Wire Recycling Machine
-
E Waste Shredder
The prevailing design utilizes a low-speed, high-torque dual-shaft shearing mechanism: a motor and gearbox drive two cutter shafts to rotate in opposite directions at different speeds. Alloy cutter discs mounted on the shafts grab and grip the material, shredding it through a combination of **shearing, tearing, and crushing** actions. The system features an automatic reverse function to protect the motor when encountering hard, difficult-to-shred objects. After coarse shredding, the material can be fed into fine-shredding equipment to further liberate metals from resinous materials. Low-speed operation results in minimal impact and dust generation, making it ideal for processing mixed-material electronic waste.
Applicable Material:
• Waste home appliances: TV sets, monitors, and casings from refrigerators and washing machines
• Computer and communication equipment: Computer towers, motherboards, hard drives, laptops, mobile phones, and server boards;
• Waste lithium batteries: NCM (ternary) and LFP (lithium iron phosphate) battery packs, modules, and individual cells—including prismatic, pouch, and cylindrical types—as well as used lithium batteries from mobile phones, laptops, and power tools;
• Cables: Waste electrical wires and cables;
• Scrap PV Panels: Solar PV Panels, PV Modules, Solar Panels, Suitable for all kinds of PV solar panel waste, etc;
• Various electronic components, power adapters, battery casings, and heat sinks;
• Electronic plastic casings, aluminum/copper heat sinks, and waste circuit boards.
Providing one-stop Solution
E Waste Recycling Line
The e-waste recycling line is an automated or semi-automated system specifically designed to process discarded electronic devices (such as computers, mobile phones, televisions, refrigerators, printers, etc.). Its purpose is to efficiently and environmentally dismantle, sort, and recover valuable materials (such as metals, plastics, and glass) from e-waste, while minimizing environmental pollution and harm to human health. We are 20 years old factory, is the manufacturer, can customize the solution for you.
Technical Parameters
| Model | Overall Size(mm) | Crushing Cavity Size(mm) | Power(kw) | Weight(kg) |
| XRD - SZSS - 500 | 2800×1300×1850 | 500×480 | 11×2 | 2200 |
| XRD - SZSS - 800 | 3000×1300×1850 | 800×480 | 15×2 | 2500 |
| XRD - SZSS - 1000 | 3300×1900×2200 | 1000×690 | 22×2 | 5200 |
| XRD - SZSS - 1200 | 3600×2000×2200 | 1200×690 | 30×2 | 6400 |
| XRD - SZSS - 1500 | 4100×2100×2400 | 1500×850 | 55×2 | 9000 |
| XRD - SZSS - 1800 | 5800×2400×3300 | 1800×1206 | 75×2 | 13600 |
| XRD - SZSS - 2000 | 6400×2700×3500 | 2000×1490 | 90×2 | 20100 |
| XRD - SZSS - 2500 | 7500×3200×3800 | 2500×1800 | 110×2 | 22500 |
| XRD - SZSS - 3000 | 8600×3500×4000 | 3000×1800 | 160×2 | 31000 |
